As heart of electric fence system, energizers provide the source for the electric current that flows through the fence wire. The amount of electric current output (size) and power source AC (110V or 240V), battery or solar differs across energizer products.

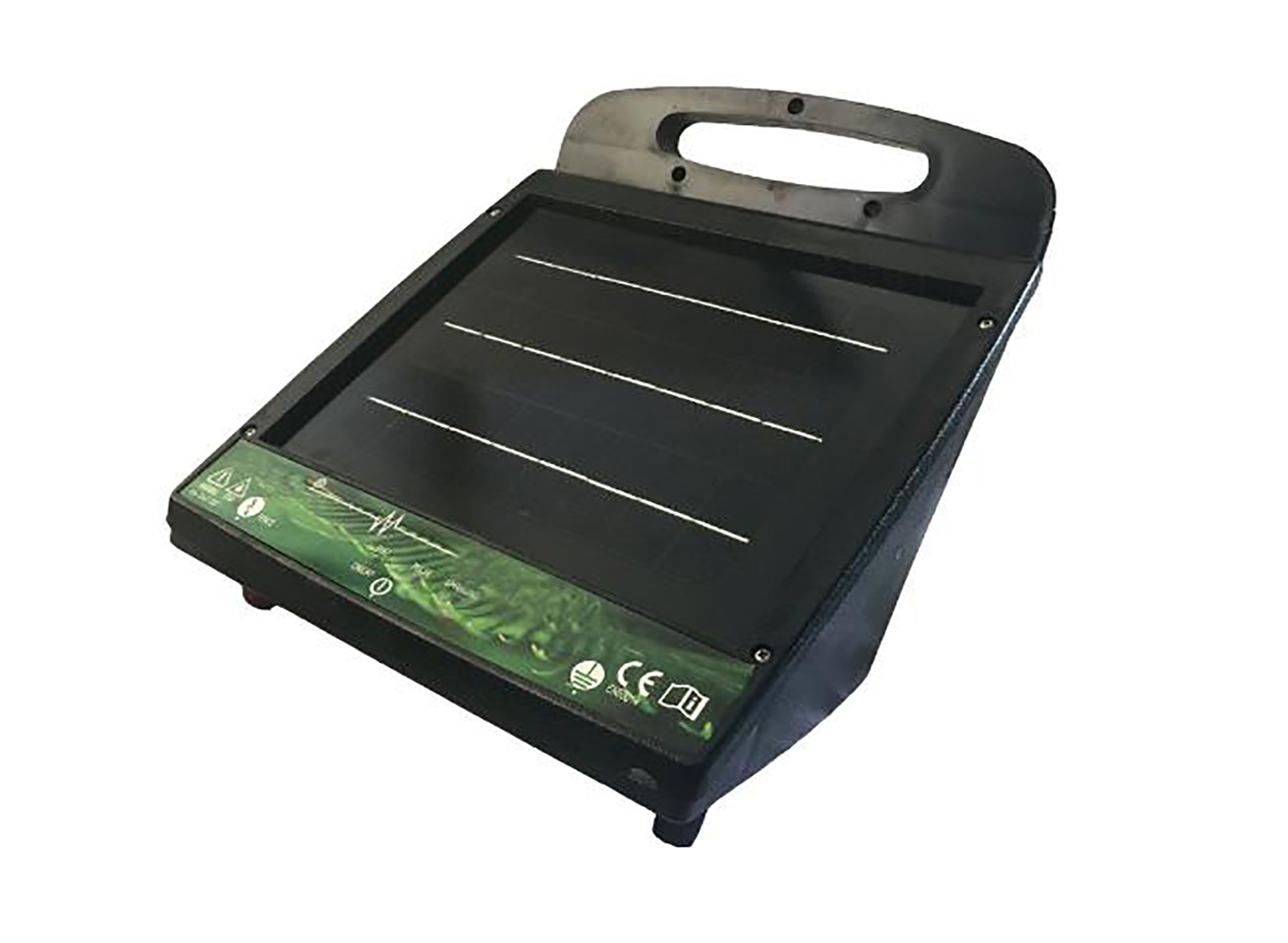

Power output at 500 ohms: 0.5J
Delivered power vacuum: 0.63J
Effective square meter: 100Acres
Effective length: 30 Miles
Solar Consumption: 47 mA
Voltage Vacuum: 10KV Max
Waterproof Rating: IP66 Outdoor Use
Power Source: Battery DC 12V/8AH(including)
Operates Days without Sunlight: UP 2 weeks
Polysilicon Solar Panel Voltage Output(Vmp): DC 18V
Polysilicon Solar Panel Current Output(Imp): 0.28A
Polysilicon Solar Panel Power Output(Pmax): 5W
Solar Panel Size: 303*213mm
Plastic case Dimensions: 270*260*210mm
G.W.: 6 KGS
Product including one AC/DC adapter,two alligator clips.

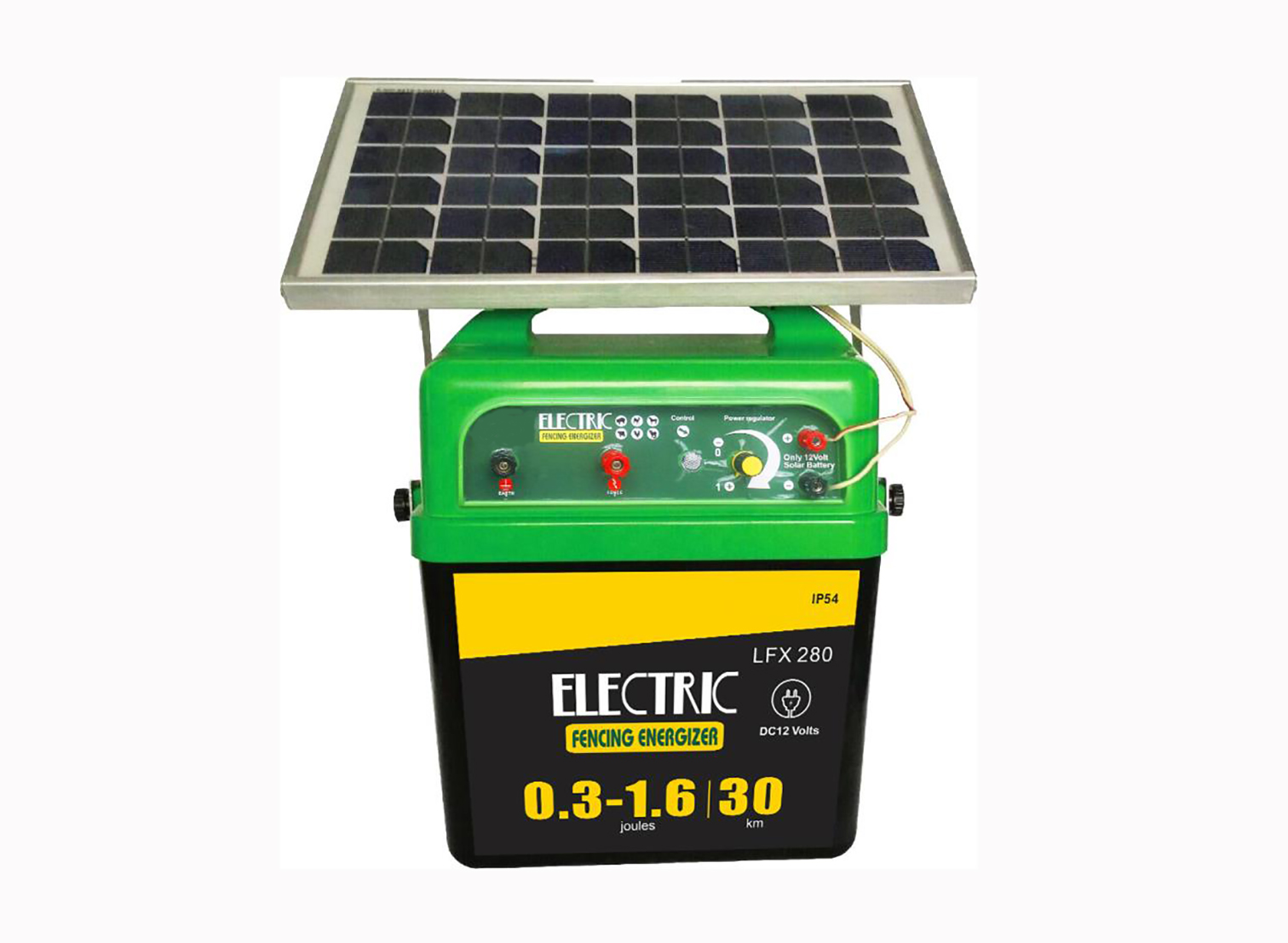

Power supply: 12 volts/20W solar panel
Consumption: 0.11A~0.25A / hour
Voltage Vacuum: 12000 volts
Delivered power vacuum: 3joules
Power output at 500 ohms: 0.3~1.6 joules
Effective length: 30 km
Effective area: 100km2/10000ha
Plastic case. Dimensions: 330*240*430 mm
Weight: 5 kg

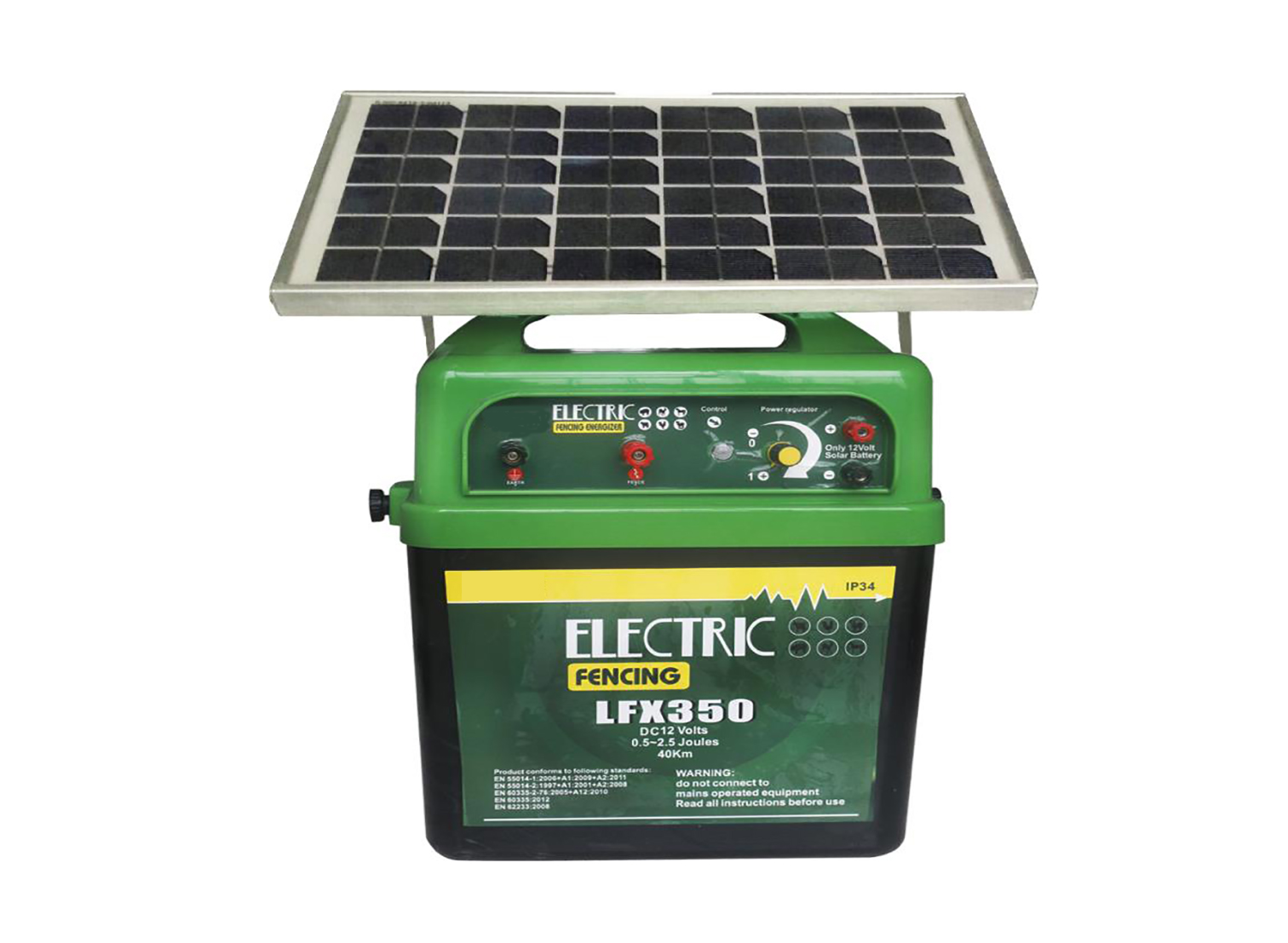

Power supply: 12 volts/20W solar panel
Consumption: 0.05A~0.25A / hour
Voltage Vacuum: 12000 volts
Delivered power vacuum: 6.2 joules
Power output at 500 ohms: 0.5~2.5 joules
Effective length: 40 km
Effective area: 100km2/10000km2
Plastic case. Dimensions: 330*240*430 mm
Weight: 5 kg
Input voltage: 110-120V 50/60Hz
Input current: 500mA
Output voltage: (pulse voltage) 4.2kV
Small output current, output energy

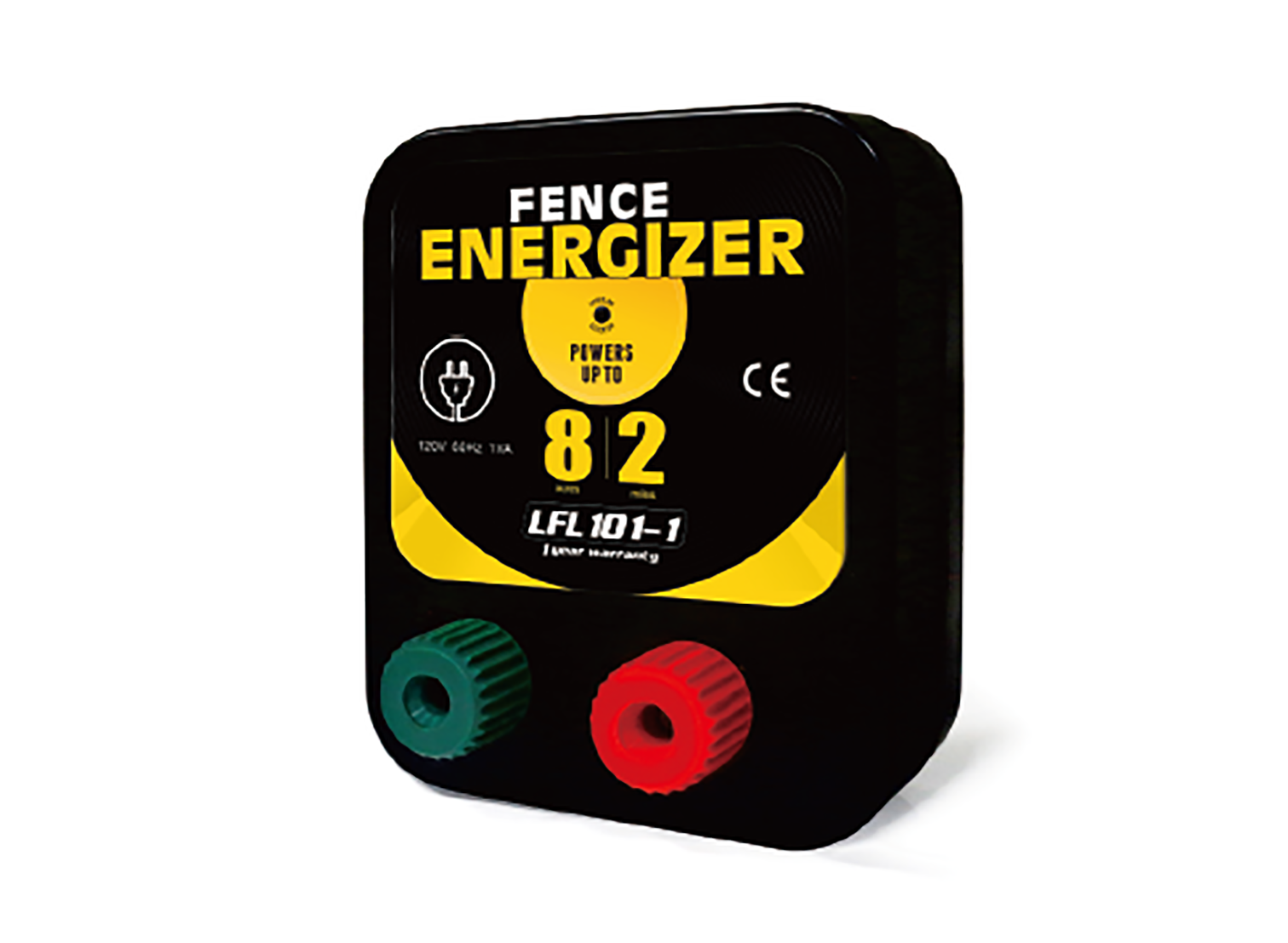

Effective square: 8 Acres
Effective length: 2 Miles
Dellvered power Vacuum: 0.16 Joules
Power output at 500 ohms: 0.1 Joules

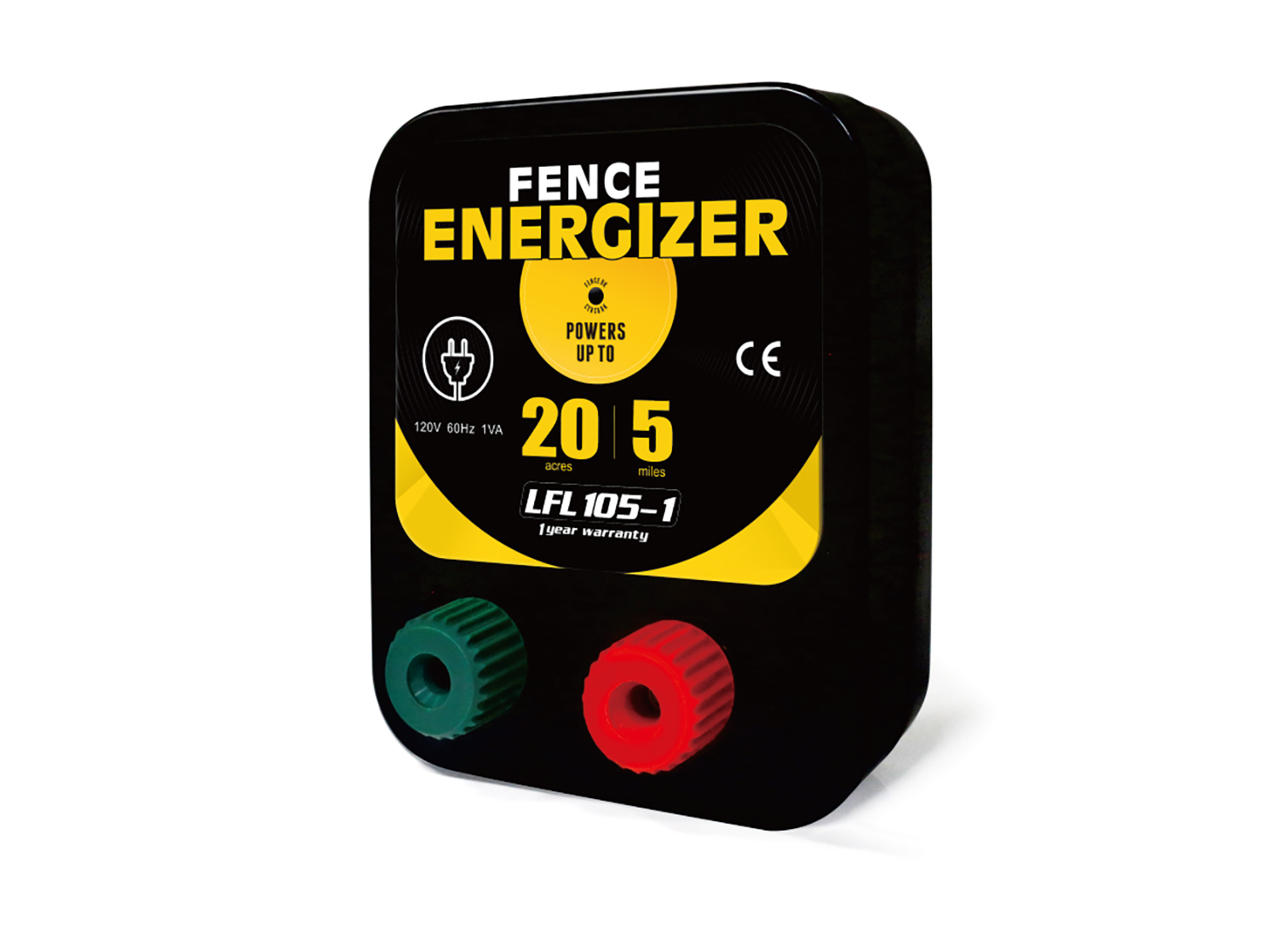

Effective square: 20 Acres
Effective length: 5 Miles
Dellvered power Vacuum: 0.32 Joules
Power output at 500 ohms: 0.2 Joules

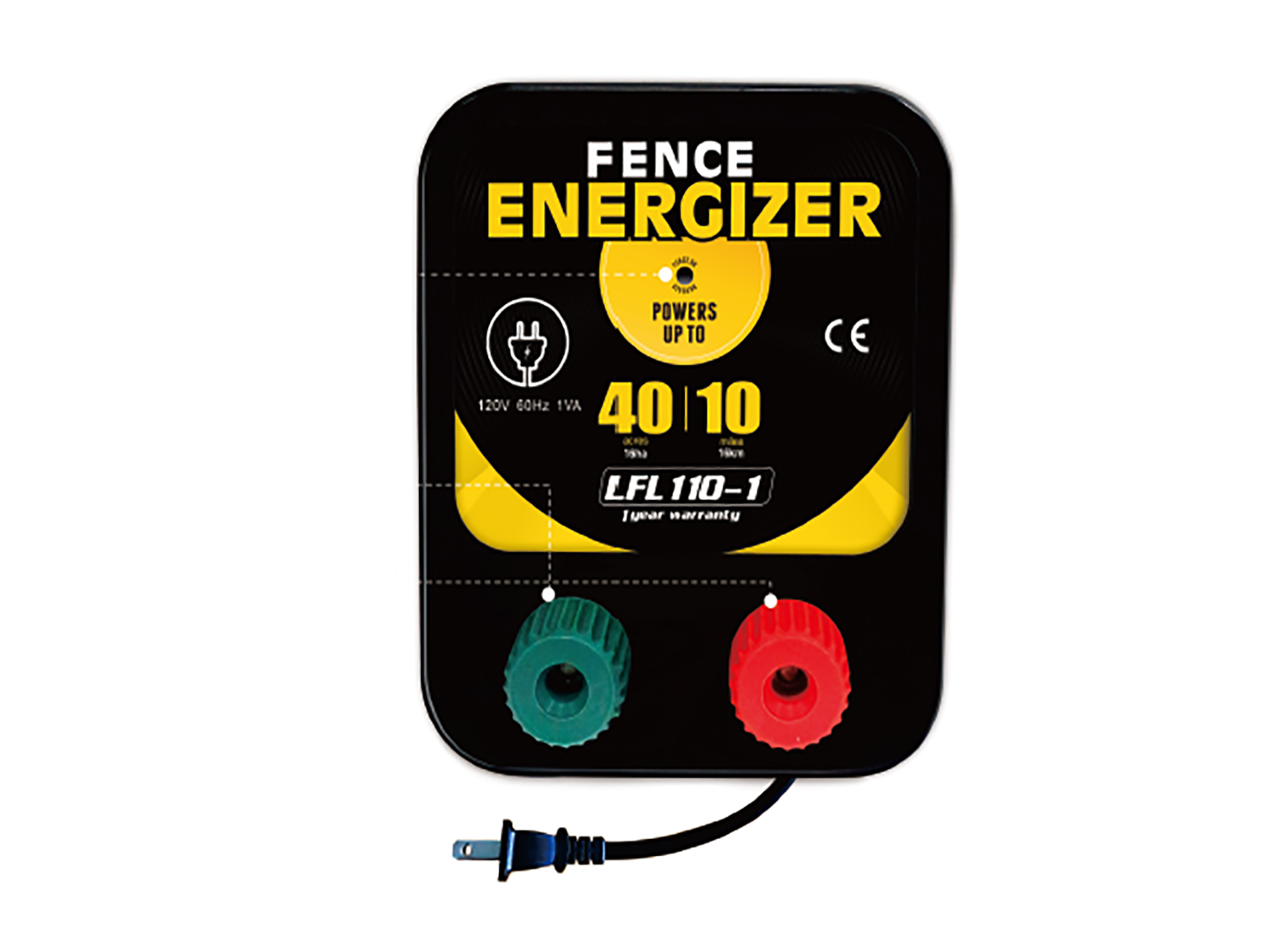

Effective square: 40 Acres
Effective length: 10 Miles
Dellvered power Vacuum: 0.49 Joules
Power output at 500 ohms: 0.3 Joules
Material:ABS, Copper

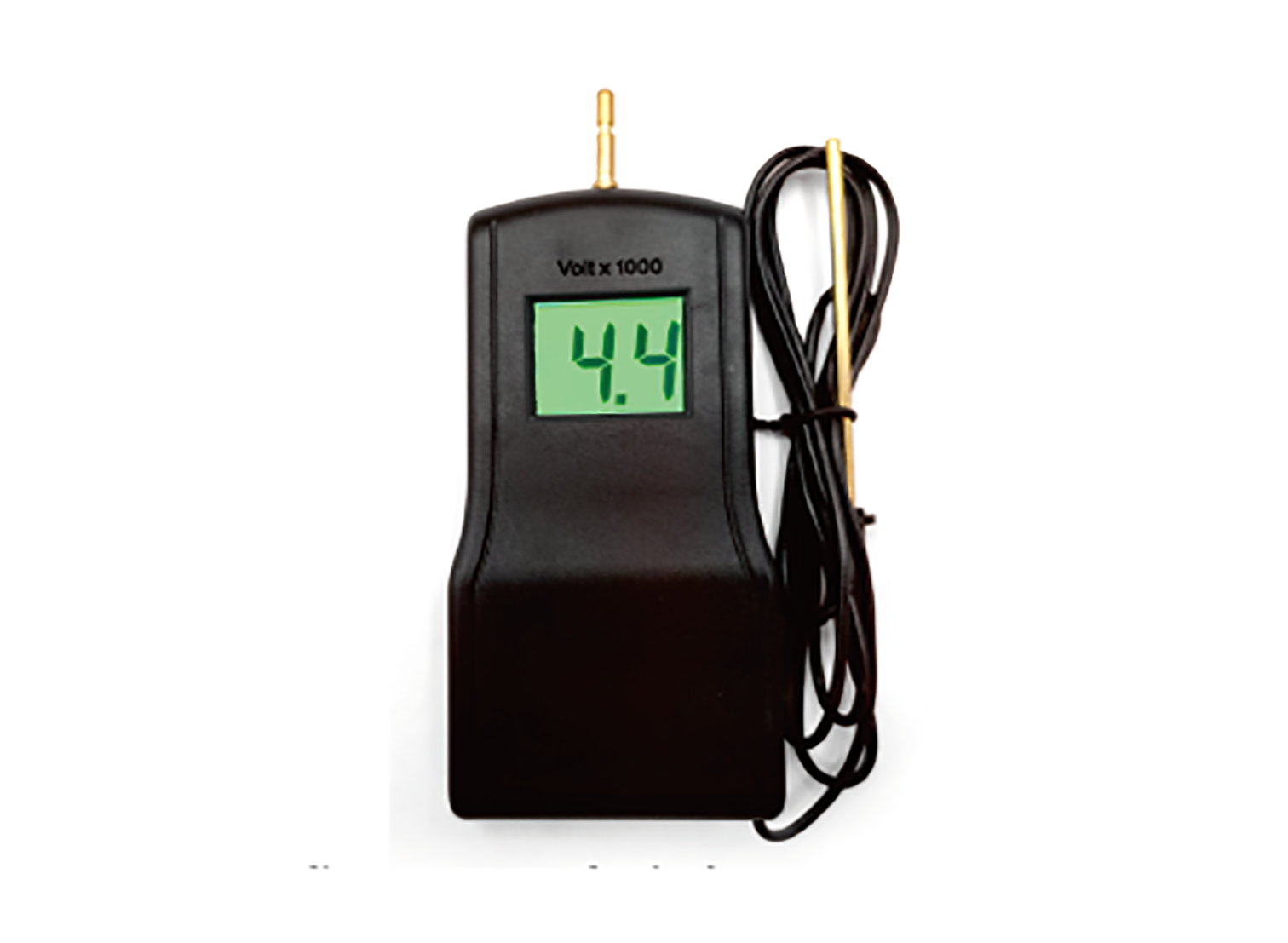

Description: Indicate 200-9900 V voltage level on farm fence via LCD screen with Led,can be use at night
Material:ABS, Copper

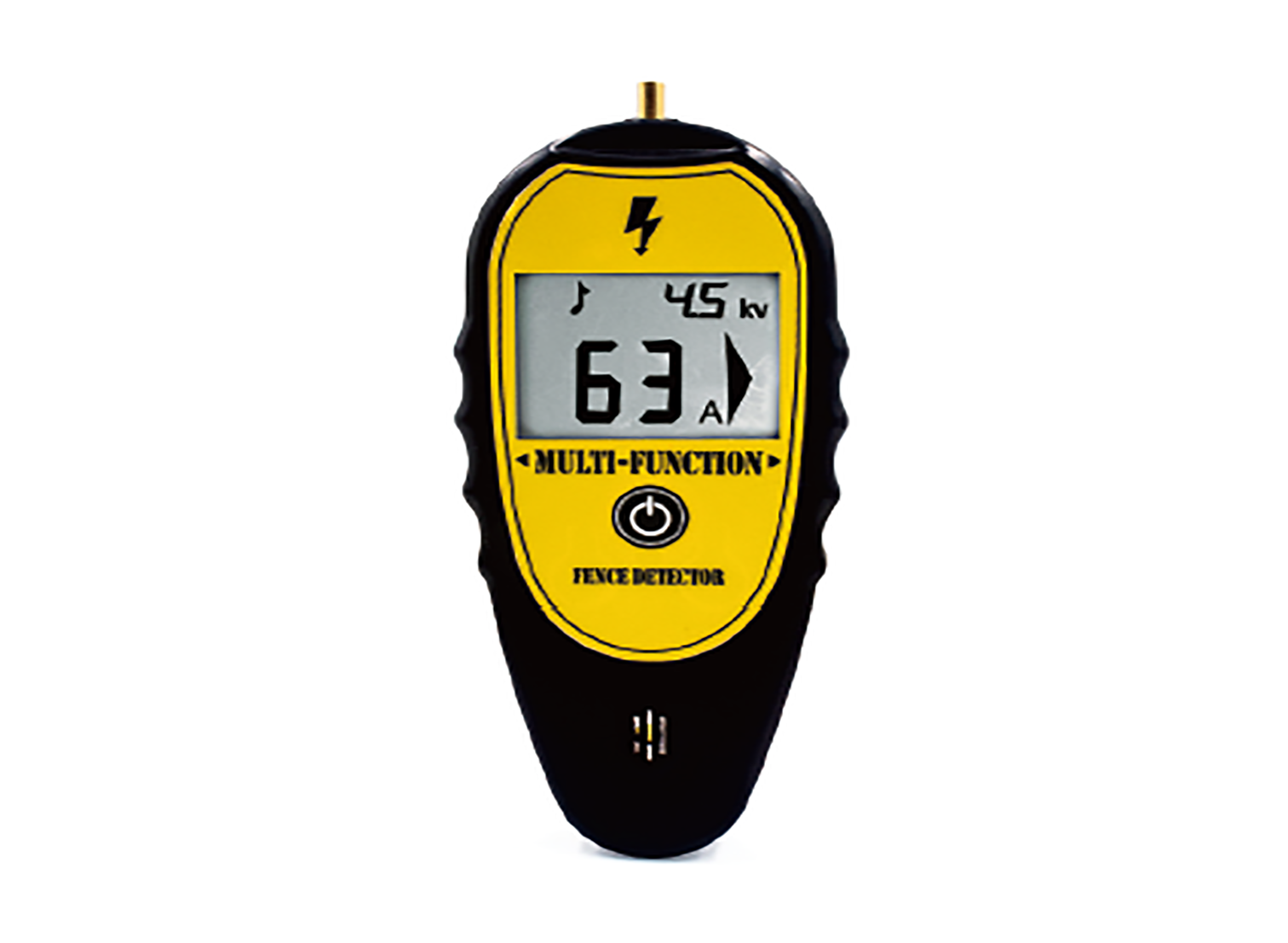

Description:Can show the location of fault for fence wire,Indicate 200-15000 V voltage level on fence via LCD screen,replaceable 9V battery
Material:ABS, Copper
Description:Indicate 1000-8KV voltage level on farm fence via 8 neon lights,waterproof,no battery required
Material:ABS, Copper
Description:Indicate 1000-10000V voltage level on farm fence via six neon lights,waterproof,no battery required
Material:ABS, Copper

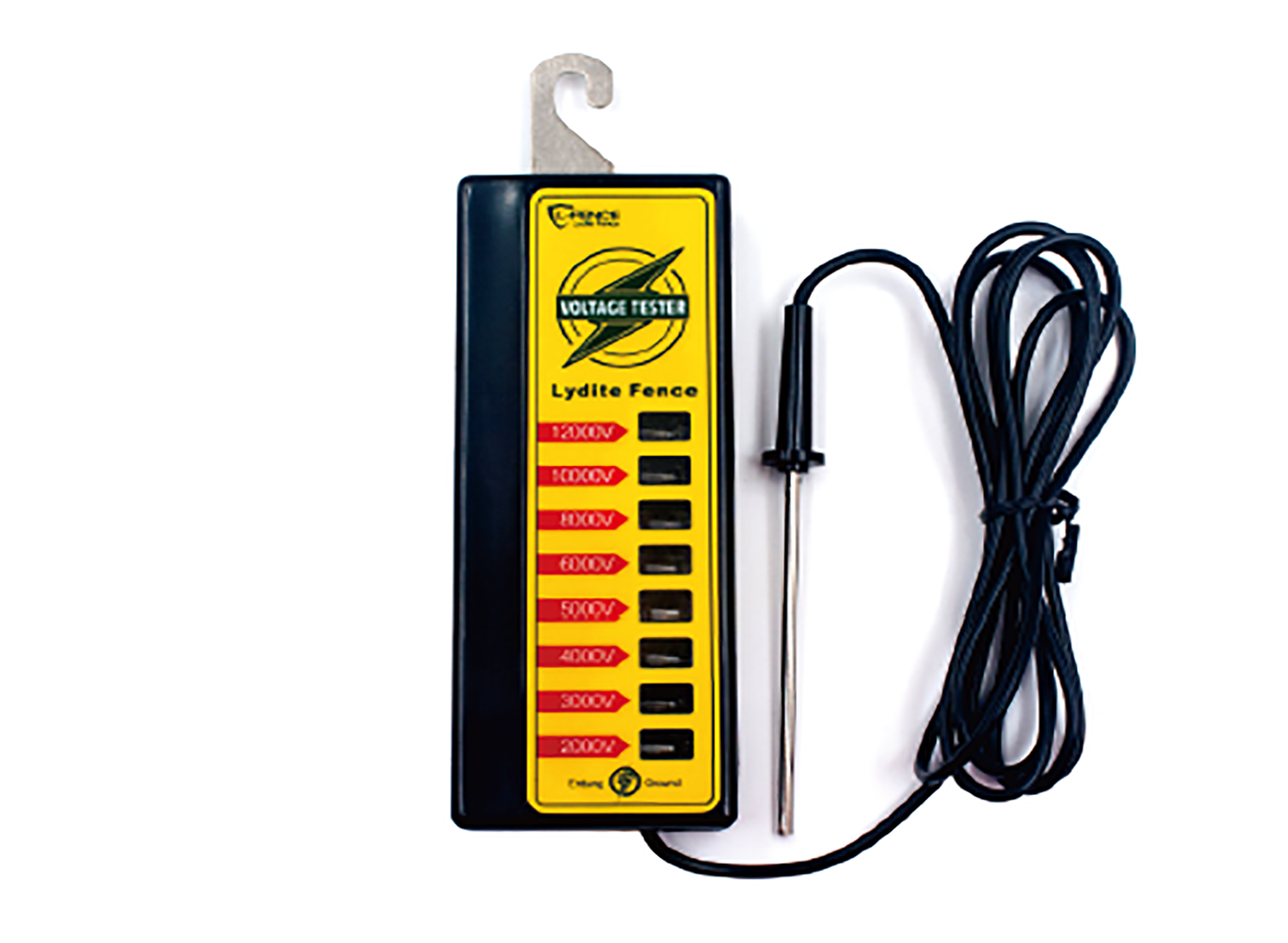

Description:Indicate 2000V-12KV voltage level on farm fence via eight neon lights,waterproof,no battery required
Material:ABS
Description:Just hold it close to an electric fence and it will give a loud beep if the fence is active

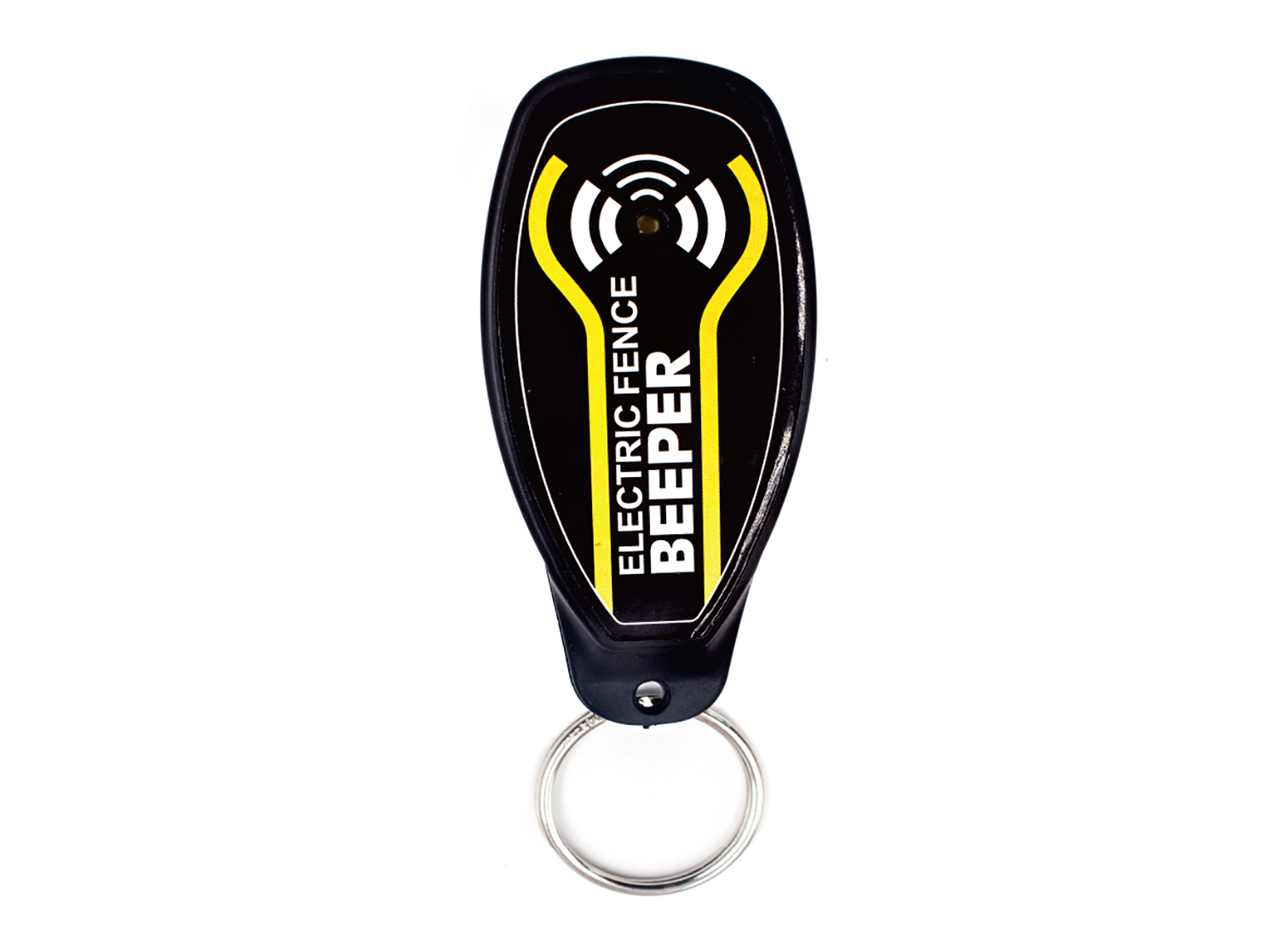

1 .Add on-off button
2. Press button and hold it close to fence, it will give a loud beep if the fence is active
3. Avoid to beep when unnecessary
4. Working distance 1-2meter near fence

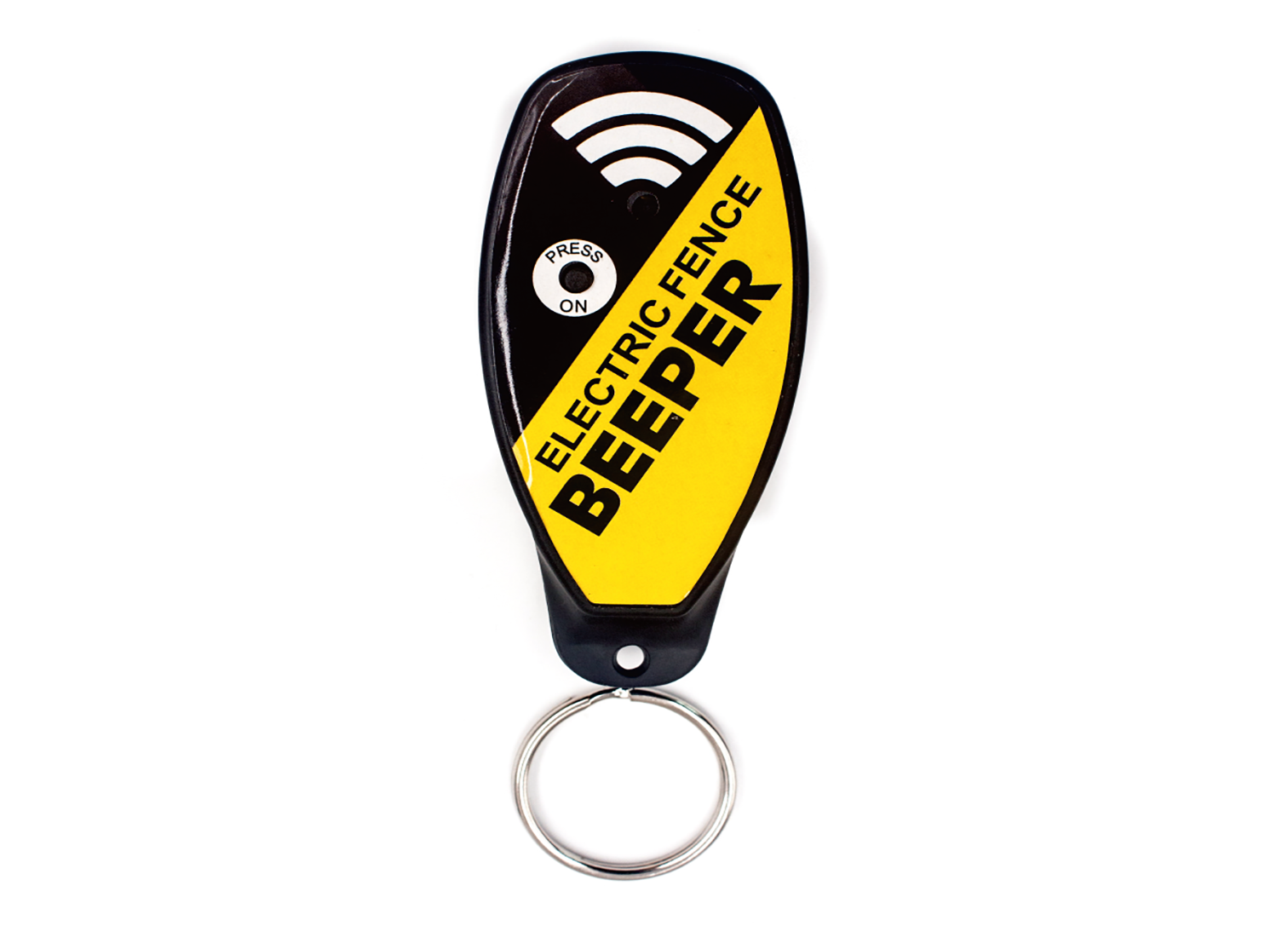

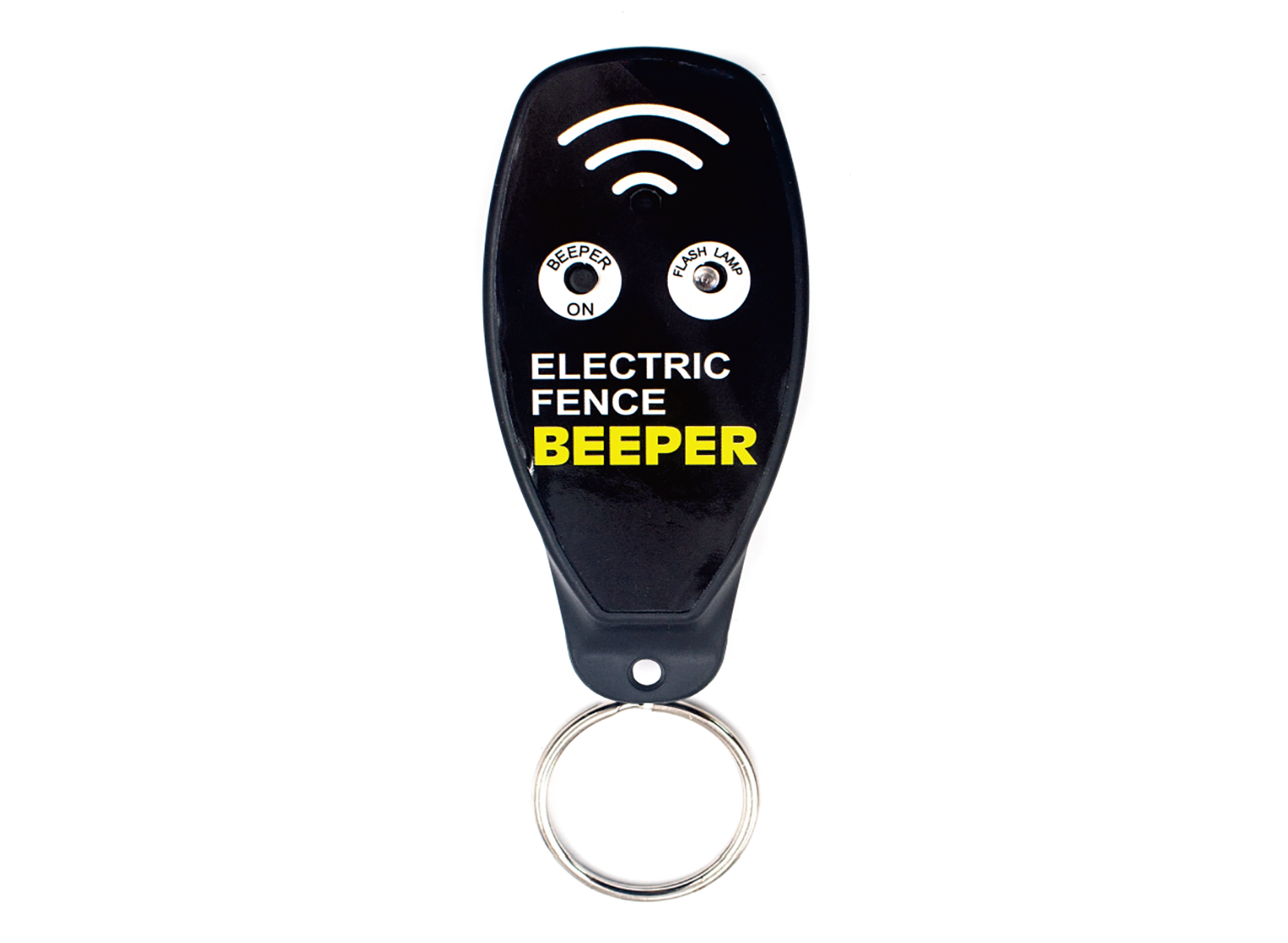

1.Add on-off button and light
2.Press button and hold it close to fence, it will give a loud beep and flash at the same time if the fence is active
3.Avoid to beep when unnecessary
4.Flash will be useful when in dark places or in the evening
5.Working distance 1-2meter near fence
